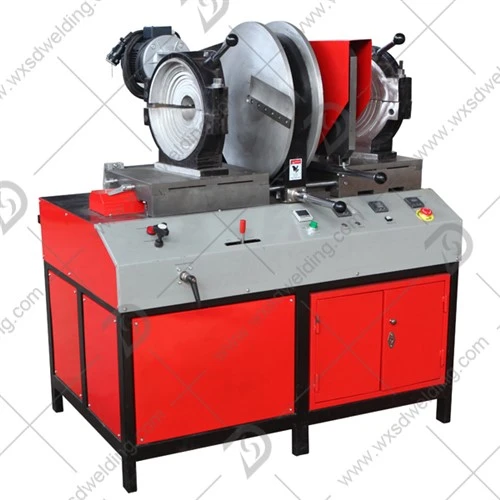

Rhiav Fitting Fabrication Tshuab
Product Description
Pipe Butt Fusion Vuam Tshuab yog tsim los rau lub pob tw vuam ntawm cov yeeb nkab-rau-pipe thiab cov yeeb nkab-rau-fitting ntawm PE PP PVDF thiab lwm yam khoom siv thermo-yas. rau cov kav dej thiab cov kav dej.
Daim ntawv thov
SDG800 rhiav haum lub tshuab yog lub zoo meej tov rau fabricating zoo PE, PP, thiab PVDF fittings. Lub tshuab no tsim nyog rau kev tsim ntau yam fittings, nrog rau lub luj tshib, tees, crosses, thiab Y duab nyob rau hauv ob qho tib si 45 degree thiab 60 degree kaum. Nrog lub tshuab no, koj tuaj yeem yooj yim thiab ua tau zoo tsim cov fittings uas koj xav tau kom ua tiav koj txoj haujlwm.
Nws ua haujlwm rau fittings.
Luv luv
PFF1000 Rhiav Fitting Tshuab Rau 45 Degree Hla PP PE Pipes haum rau vuam cov kav dej yas thiab fittings ua los ntawm PE, PP & PVDF, Ua los ntawm cov khoom siv txhuas, muaj cov cuab yeej npaj, cua sov phaj, cov ncej, Hydraulic Unit thiab kev txhawb nqa.
Feature:
1. Tshem tau PTFE coated cua sov phaj nrog qhov kub thiab txias 2. Fais Planning Tool nrog reversible ob chav txiav ntug hniav.
3. Hydraulic Unit muab vuam tshuab nrog compressing zog
4. Ua los ntawm cov khoom siv aluminium.
5. Tsawg pib siab ua kom ntseeg tau qhov zoo ntawm cov kav dej me me.
6. Temperature Controller thiab Timer, yooj yim kom paub lub sijhawm thiab qhov kub thiab txias
Technical parameter
|
Hom |
SDG 800 |
|
|
Khoom siv rau vuam |
PE, PP, PVDF |
|
|
Max. ntau yam ntawm cov yeeb nkab sab nraud txoj kab uas hla |
800 hli |
|
|
Ib puag ncig kub |
-5-45 degree |
|
|
Fais fab mov |
380,50Hz |
|
|
Tag nrho lub zog |
47.28 qw |
|
|
Max. qhov kub ntawm cov cua sov phaj |
Lub kaum sab xis ntawm 270 degree |
|
|
Qhov sib txawv ntawm qhov kub thiab txias ntawm cua sov phaj |
Tsawg dua lossis sib npaug ± 7 degree |
|
|
Lub cev |
Net Loj, L × W × H, mm |
3900×2800×1900 |
|
tus tswj |
Net Loj, L × W × H, mm |
355×550×1550 |
|
Hluav taws xob lub thawv |
Net Loj, L × W × H, mm |
650×420×1260 |
Cua sov phaj:
1. Siv Teflon txheej cov khoom tuaj ntawm Nyiv, tom qab ob zaug txheej thiab peb txheej txheem.
2. Cov tub ntxhais tseem ceeb ntawm cov cua sov phaj yog thickened thiab tsis-stick tube, lub tshav kub hloov yog txawm, txhawb nqa aviation kev twb kev txuas kab los xyuas kom meej kev ruaj ntseg kev sib cuag ntawm lub hwj chim mov.
3. Piv nrog rau lwm cov tuam txhab, lub thickness ntawm cov cua sov phaj yog nce los ntawm 5 hli, thiab lub tshav kub cia thiab thermal conductivity muaj zog.
Hydraulic system:
1. Timer, ntsuas lub siab, ntsuas kub thiab lub tswb yuav tsum tau nruab rau ntawm lub rooj ua haujlwm kom yooj yim rau kev soj ntsuam thiab txhim kho vuam efficiency.
2. Lub ntsuas kub thiab siab tswj valve yog CE tau ntawv pov thawj, thiab kev tswj xyuas qhov tseeb tuaj yeem ncav cuag 0.01%.
3. Lub chaw nres tsheb hydraulic raug teeb tsa nrog lub accumulator, uas tuaj yeem paub txog kev ua haujlwm ntawm kev siv lub siab tsis siv neeg thiab txo tus naj npawb ntawm phau ntawv siab ntxiv.
Milling Cutter:
1. Siab zog milling cutter, daim iav cutter disk, muaj zog lub cev muaj zog, siab concentricity, du milling.
2. High-power Bosch xyaum yog saws rau milling lub cev muaj zog, uas muaj zog thiab muaj zog yam tsis muaj slipping.
3. Lub milling cutter yog nruab nrog ib txoj hauj lwm txwv, uas tuaj yeem tig tau tsuas yog thaum muab tso rau hauv tus ncej kom tsis txhob raug mob.
VIM LI CAS US
1) Advanced Laboratory
2) Mature fusion vuam tshuab
3) Cov khoom seem warehousing zoo soj ntsuam, tshuaj xyuas thaum lub sij hawm ntau lawm txheej txheem, ua tiav tshuab tshuaj xyuas thiab commissioning ua ntej xa.
4) Koom tes nrog cov tsev kawm qib siab paub zoo, koom nrog kev tsim qauv ntawm GB lub teb chaws tus qauv, muab kev cob qhia rau fusion vuam cov kws tshaj lij hauv tsev thiab txawv teb chaws, thiab txhawb nqa kev qhia hauv online dawb.
5) Cov khoom seem txaus txaus, lub sijhawm xa khoom luv, tsawg dua 50 teeb, lub sijhawm xa khoom 7-10 hnub ua haujlwm, raws li ROHS 2.0 tus qauv.
FAQ
1.Q: Yuav ua li cas txog qhov kev pab cuam tom qab muag?
A: Peb muab 12 lub hlis lav zoo tom qab xa tawm, thiab qee qhov khoom siv yooj yim tawg yooj yim ntawm lub tshuab, peb kuj muab cov kev pab tswv yim pub dawb ntev thiab cov kev pab cuam clonsluting, peb yuav xa peb tus engineer mus rau lub nkoj los muab kev pabcuam yog tias tsim nyog .
2.Q: Thaum peb tau txais koj lub tshuab, puas muaj lwm yam Accessories peb yuav tau txais?
A: Yog lawm, qee qhov yooj yim puas tsuaj yuav raug muab pub dawb thaum muaj qee qhov teeb meem me me tshwm sim.
3.Q: Koj cov khoom puas tuaj yeem hloov kho?
A: Yog, peb muaj ib pab neeg ua haujlwm uas muaj kev paub ntau hauv cov khoom siv vuam, yog li peb yuav sim peb qhov zoo tshaj plaws los ua kom tau raws li koj qhov yuav tsum tau ua.
4.Q: Yuav ua li cas txog kev thauj mus los?
A: Feem ntau peb siv seaway, vim nws yooj yim dua thiab pheej yig dua.
5.Q: Koj qhov kev pab cuam tom qab muag yog dab tsi?
A: Qee qhov khoom seem puas tuaj yeem muab pub dawb.
6. Q: Lub sijhawm ua haujlwm ntev npaum li cas?
A: 3-10 hnub. Tab sis feem ntau cov khoom, peb muaj Tshuag.
7.Q: Koj cov nqe lus them nqi yog dab tsi?
A: T / T lossis L / C
