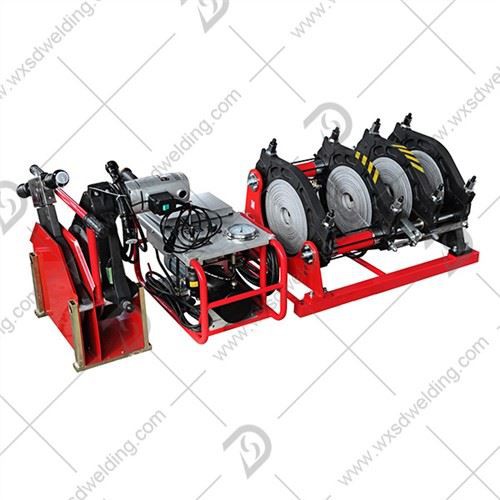

"PE HDPE yas yeeb nkab weldin" hais txog kev siv cov cuab yeej siv xws li lub tshuab ua kom sov kom sov cov nplaim ntawm ob ntu txuas mus txog thaum lawv mus txog qhov kub yaj, kom ob lub kav dej yuav yog ib qho. Kub yaj vuam tau muab faib ua pob tw fusion vuam, lub qhov (socket) thiab lub vuam eeb. Ntawm lawv, taub qab fusion vuam yog txoj hauv kev txuas ntau dua, thiab nws tseem yog qhov dav tshaj plaws siv txoj hauv kev txuas rau PE kav dej. Cov cuab yeej siv vuam yog qhov yooj yim, kev sib txuas tus nqi yog kev lag luam yooj yim, cov pob qij txha txuas tau ruaj khov thiab txhim khu kev qha, vuam pob qij txha uas dhau qhov muaj zog ntawm cov khoom siv hauv paus tuaj yeem tau txais, thiab vuam muaj cov khoom sib khi zoo. Yog li ntawd, taub qab fusion welding txoj kev yog nrov.
Peb qhov zoo:
1. Cov khoom siv raw ntawm lub tshuab thav duab yog txhuas ZL104, nws yog lub teeb tab sis muaj zog, yog ib yam khoom siv zoo tshaj plaws rau tshuab.
2.Cov khoom siv hluav taws xob tseem ceeb tshaj plaws hauv Suav teb, ntau yam tuaj txawv teb chaws tuaj.
3.Removable PTFE coated rhaub nrog cais kev tswj qhov kub thiab txias, tuaj yeem tswj tau qhov kub kom tsawg.
4.Lub ntsej muag hluav taws xob txais kev thim rov qab ob npaug rau ntug txiav, uas tuaj yeem ua rau txiav cov nyhuv zoo dua.
Technology tsis
Vuam ntau yam (hli) | 90mm-110mm- 125mm-140mm-160mm-180mm -200mm-225mm-250mm-280mm-315mm |
Cua sov phaj kub | 270°C |
Cov cua kub phaj kub (170-250 ° C) | & lt; ± 7 ° C. |
Kev hloov kho siab | 0-6.3MPa |
Hla ntu ntu ntawm lub tog raj kheej | 2306 hli |
Ua hauj lwm Voltage | 380V 50 HZ |
Cua sov phaj zog | 3 KWG |
Cutter zog | 1.1 KWG |
Lub zog chaw nres tsheb hydraulic | 0.75KW |
Tag Nrho Lub Hwj Chim | 4.85 KWG |
N.W | 200KG |
Lwm yam cav tov
Tsis teb los tau
Niaj hnub no, peb cov khoom suav nrog cuaj yam thiab ntau dua 20 hom uas tuaj yeem siv rau kev tsim cov yeeb nkab yas thiab ua cov khoom siv hauv rhiav raws li hauv qab no:
SDDS series phau ntawv taub qab fusion tshuab
SDD series taub qab fusion tshuab
SDQZD series Auto-butt fusion tshuab
SDM series eeb fusion tshuab
SDG series rhiav taub qab fusion tshuab
SDC series band pom
Lwm cov cuab yeej tshwj xeeb Series
Tam sim no qhov loj tshaj tuaj yeem yog txog 3000mm
FAQ
1.Koj lub sijhawm them nyiaj yog dab tsi?
Qauv xaj: 100%ua ntej los ntawm T/T, Westrn Union, Paypal lossis Kev Nyab Xeeb Kev Lag Luam.
Kev txiav txim ntau: T/t, 30% tso nyiaj, 70% tiv thaiv daim B/L.
2: Koj lub sijhawm yog dab tsi?
Qauv xaj: tsis pub dhau 3 hnub ua haujlwm tom qab tau txais 100% kev them nyiaj.
Kev Txiav Txim: 7-20 hnub ua haujlwm tom qab tau txais qhov tso nyiaj (raws li qhov kev txiav txim' suav tag nrho daim ntawv 7 hnub ua haujlwm txog 20 hnub ua haujlwm).
3: Koj lub khw tseem ceeb yog dab tsi?
Koj lub khw tseem ceeb yog dab tsi? Sab Qab Teb Asia (Thaib, Malaysia, Indonesia), South America (Peru, Chile), Russia, India, Australia.
Tseeb, peb ua tau
Cim npe nrov: pe hdpe yas yeeb nkab vuam tshuab, cov chaw muag khoom, chaw tsim khoom, customized, lag luam wholesale, luv nqi, hais tawm, ntau, hauv Tshuag
