Yas Yeeb Nkab Ntau Lub Qhov Rooj Kaw
Cov hlua khi siv tau tuaj yeem siv los ua lauj tshib, tee thiab hla thiab nws txiav PE kav dej raws li teeb tsa lub kaum ntse ntse. Yog li kom lub tshuab muaj cov yam ntxwv ntawm kev ua haujlwm siab thiab siv tus nqi ntawm cov khoom siv.
Nta:
1.Xauv lub kaum sab xis ntawm 0 txog 67.5 °
2.Txhais kev kuaj thiab nres ntawm lub tshuab thaum pom hniav tawg Ua rau kom ntseeg tau tias tus neeg tsav tsheb muaj kev nyab xeeb.
3.Txiav kom siv cov kav dej khov kho lossis txheej txheem ntawm phab ntsa ua los ntawm cov thermoplastic xws li PE thiab PP, thiab tseem muaj lwm cov yeeb nkab thiab fittings ua los ntawm cov hlau tsis ...
4.Txoj kev sib tw, qis suab nrov, yooj yim lis.
5.Txhais nrog 98/37 thiab 73/23 EEC cov qauv.
Siv Tau Ntau Yam thiab Seev Txheej Txheem
Hom | SDC630 | |
Cov ntaub ntawv rau txiav | PE ， PP, PVDF | |
Max. Txiav muaj peev xwm | DN 630 hli | |
Txiav lub kaum sab xis | 0°～67.5° | |
Qhov tsis raug ntawm lub kaum sab xis | ≤1° | |
Kab kab nrawm ntawm pom hniav | 195 m / min | |
Ib puag ncig ntsuas kub | －5～45℃ | |
Lub hwj chim muab | ～380 V±10% | |
Zaus | 50 Hz | |
Tam sim no tag nrho | 8A | |
Tag nrho cov hwj huam | 3.7 kW | |
Tsav Xwm Tsav Tsheb | 2.2 kW | |
Chav tsev hydraulic tsav | 1.5 kW | |
Rwb thaiv tsev tsis kam | GG gt; 1MΩ | |
Max. hydraulic siab | 6 MPa | |
Cov kab pib | Packing qhov ntev (hli) | 1940×2710×1340 |
Ceeb thawj (kg) | 800 | |
Pom cov hniav | Packing qhov ntev (hli) | 3284×1740×610 |
Ceeb thawj (kg) | 800 | |
Yuag tag nrho (kg) | Yuag tag nrho (kg) | 1600 |

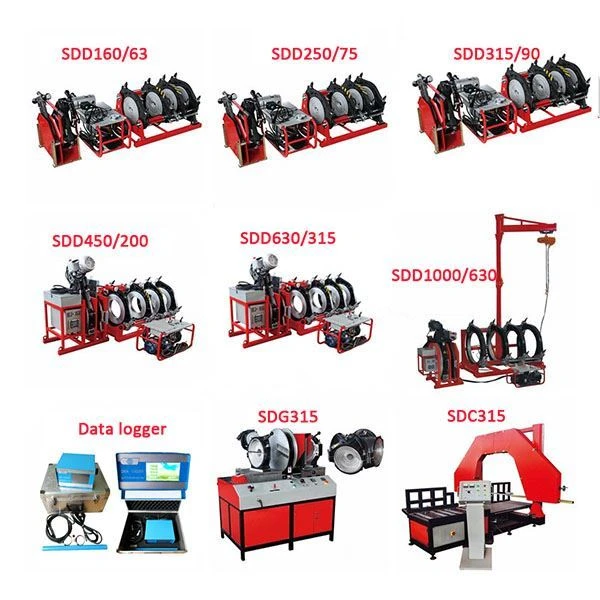

Qee cov khoom lag luam
